How it Works

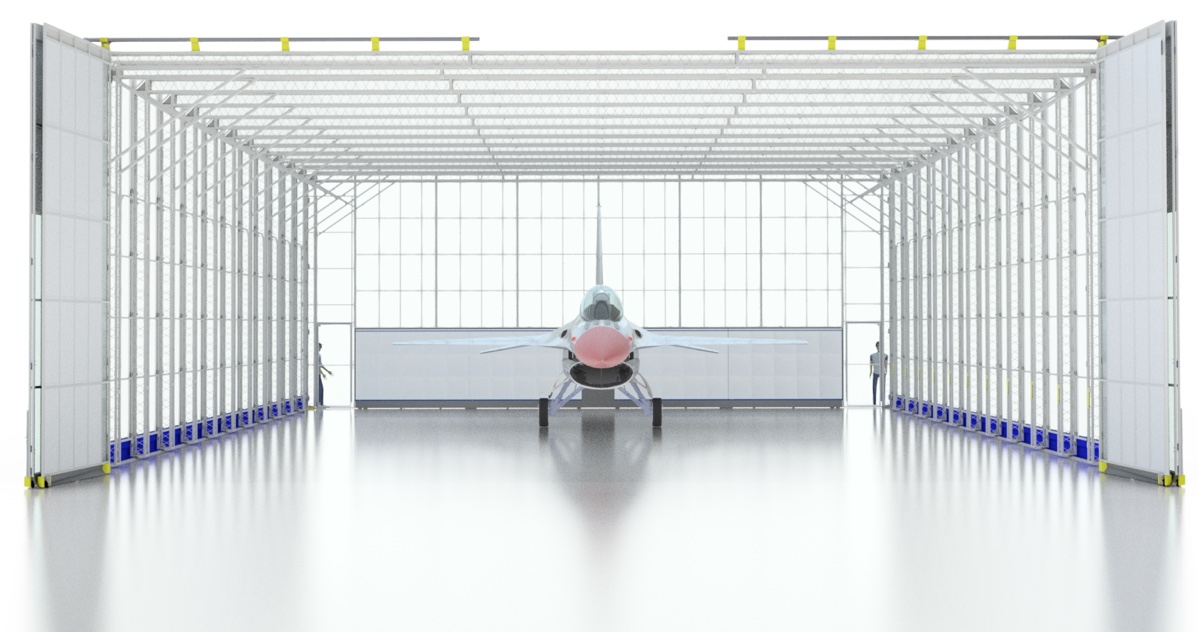

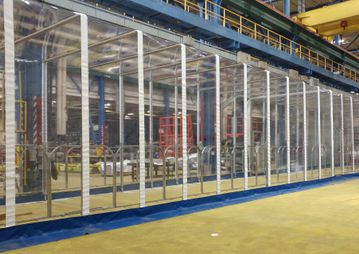

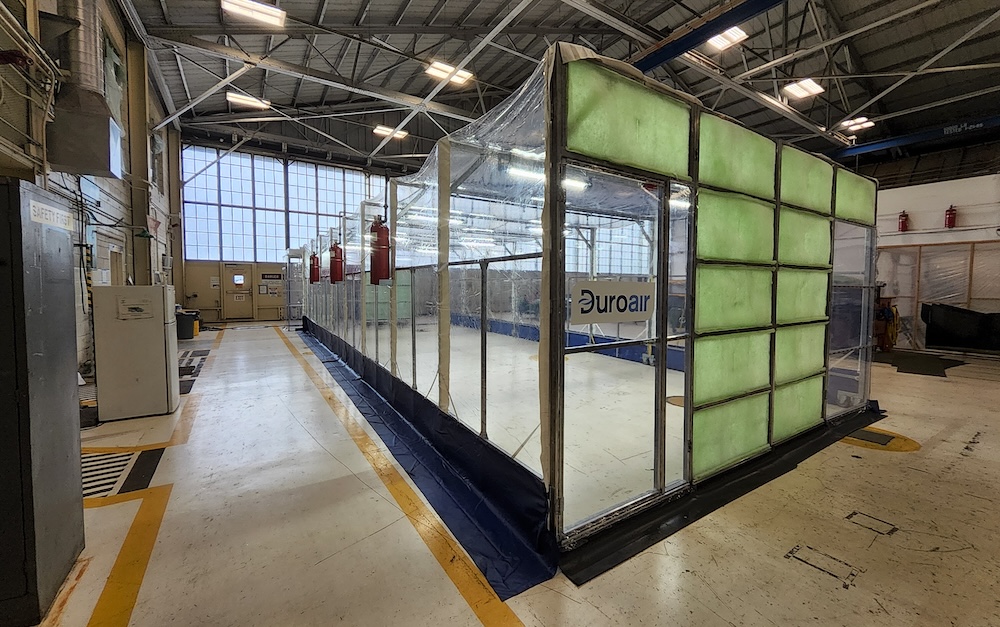

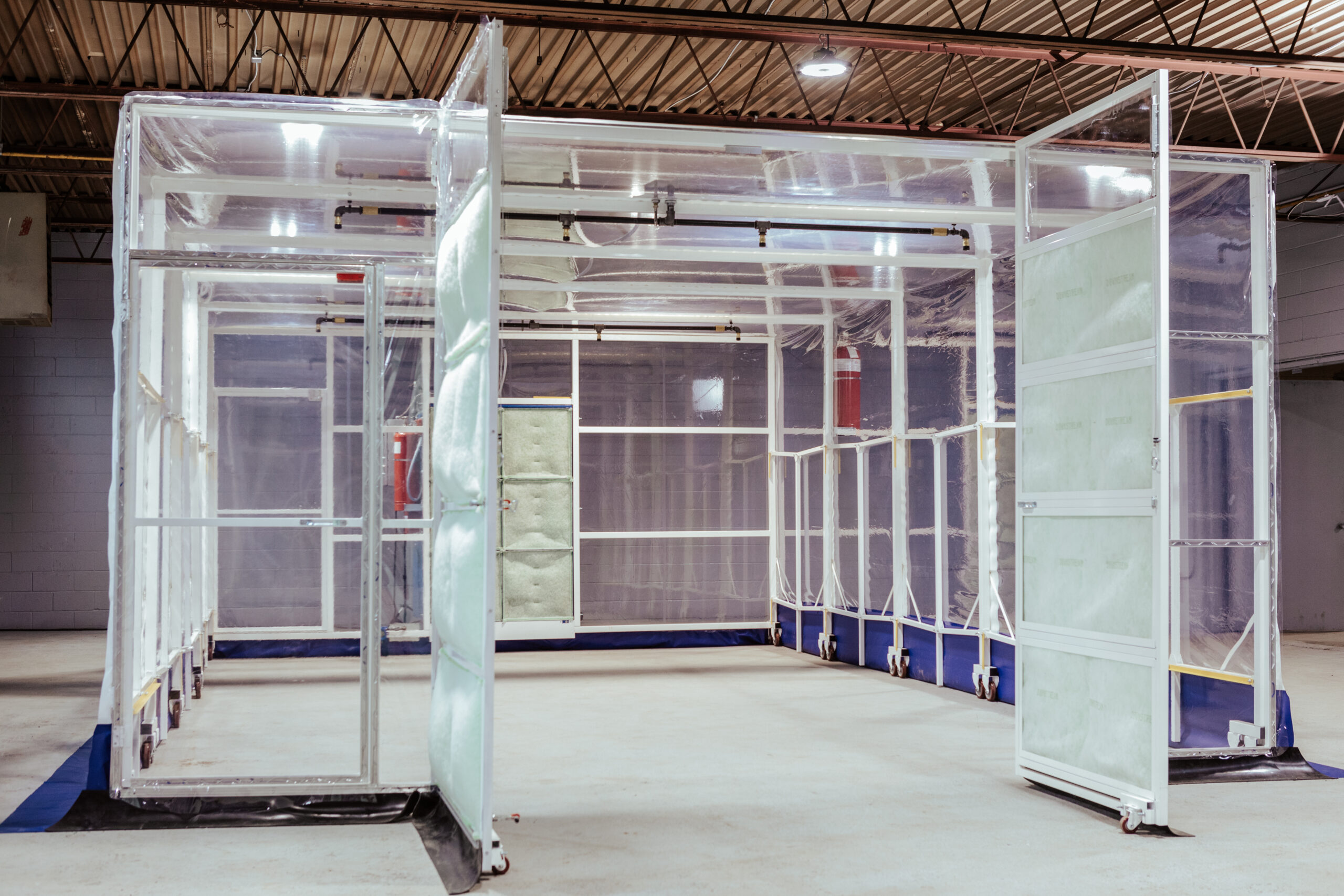

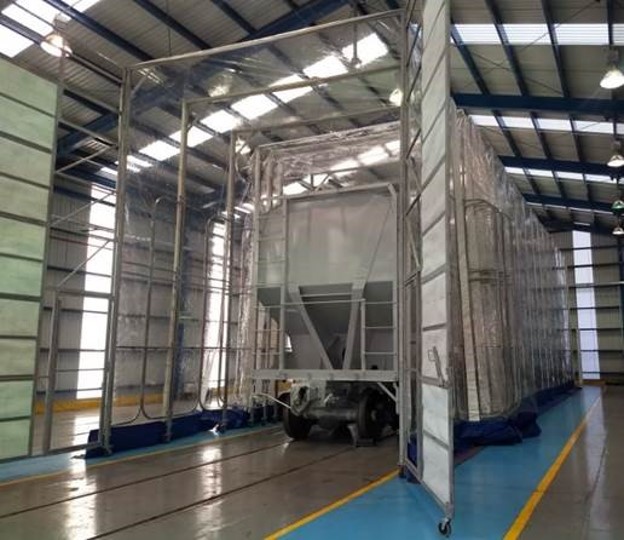

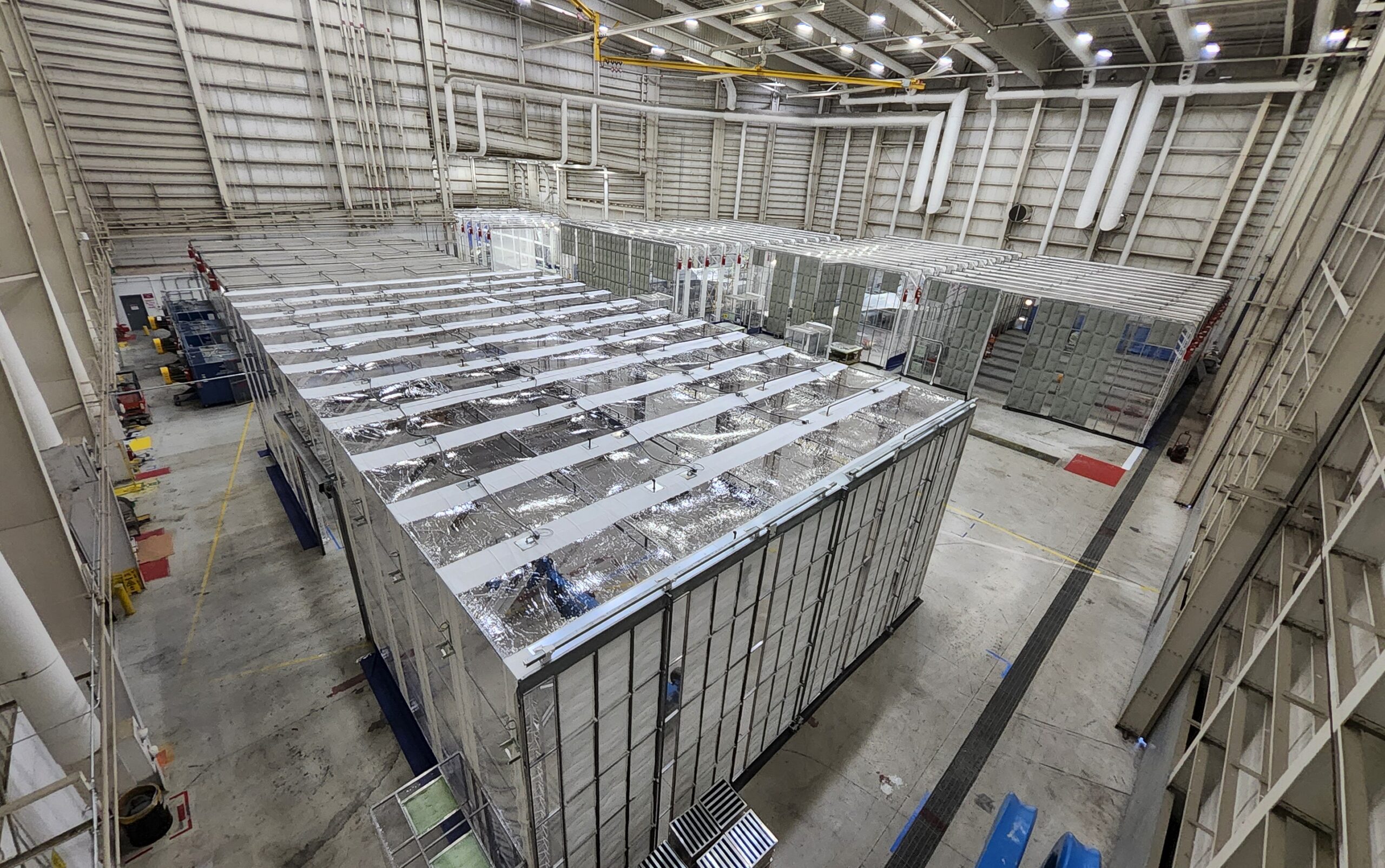

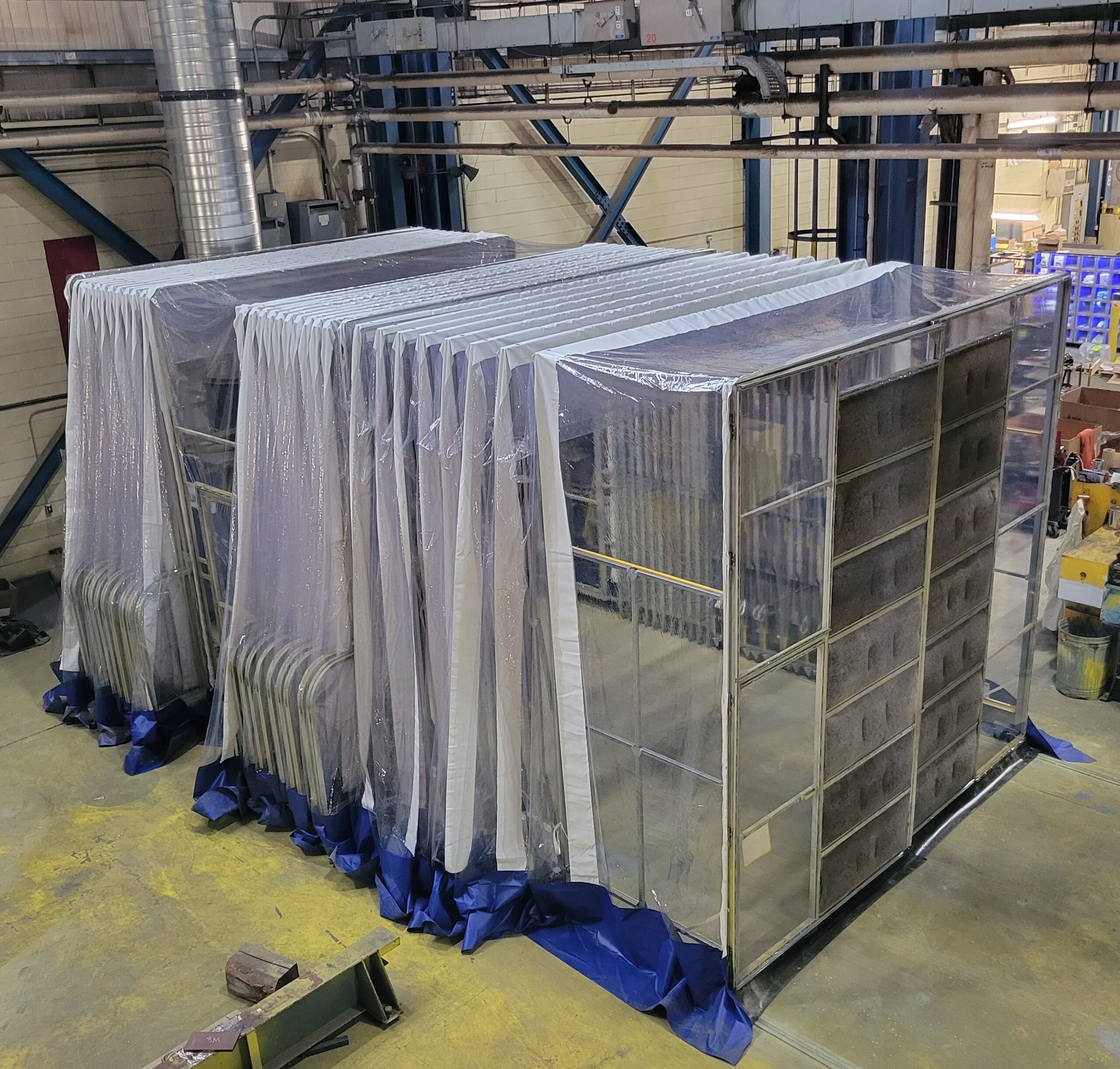

The DuroRoom™ portable workstation is custom-engineered to accommodate any workspace and any workpiece. It retracts to 20% of its extended length to accommodate use of an overhead crane and facilitate material handling or save space when not in use. DuroRoom retractable enclosures are used for painting and coating, clean rooms, isolation rooms, anterooms or gowning rooms and non-destructive testing environments. Most DuroRooms retract but fixed rooms are also available. Sizes up to 50’ high x 65’ wide x any linear length.
Pair it with:
Key Features
- Taper Draft Airflow Technology: Moves air through the enclosure in a cross-draft design, minimizing overspray on side walls and improving drying times.
- Negative, positive or neutral pressure rooms: are available depending upon the process.
- Code-Compliant Enclosure Frame: Galvanized, heavy wall tube steel frame with welded construction. Comes in 2” square steel tube, ladder truss, tri-truss or quad truss. Powder coating is available.
- Vinyl Covering: Heat-welded vinyl and PVC scrim are flame retardant (meeting NFPA 701 requirements), rot, mildew and ultra-violet resistant, for indoor applications.
- Lighting Options: Optional lighting is available; C1D1, C1D2 and standard LED. (Extra lighting is usually not required with our double-polished clear vinyl with 95% light transfer).
- Quick Seals: Quick seals are used to penetrate the vinyl covering and allow mechanicals to enter the enclosure (for air, electrical requirements, etc.).

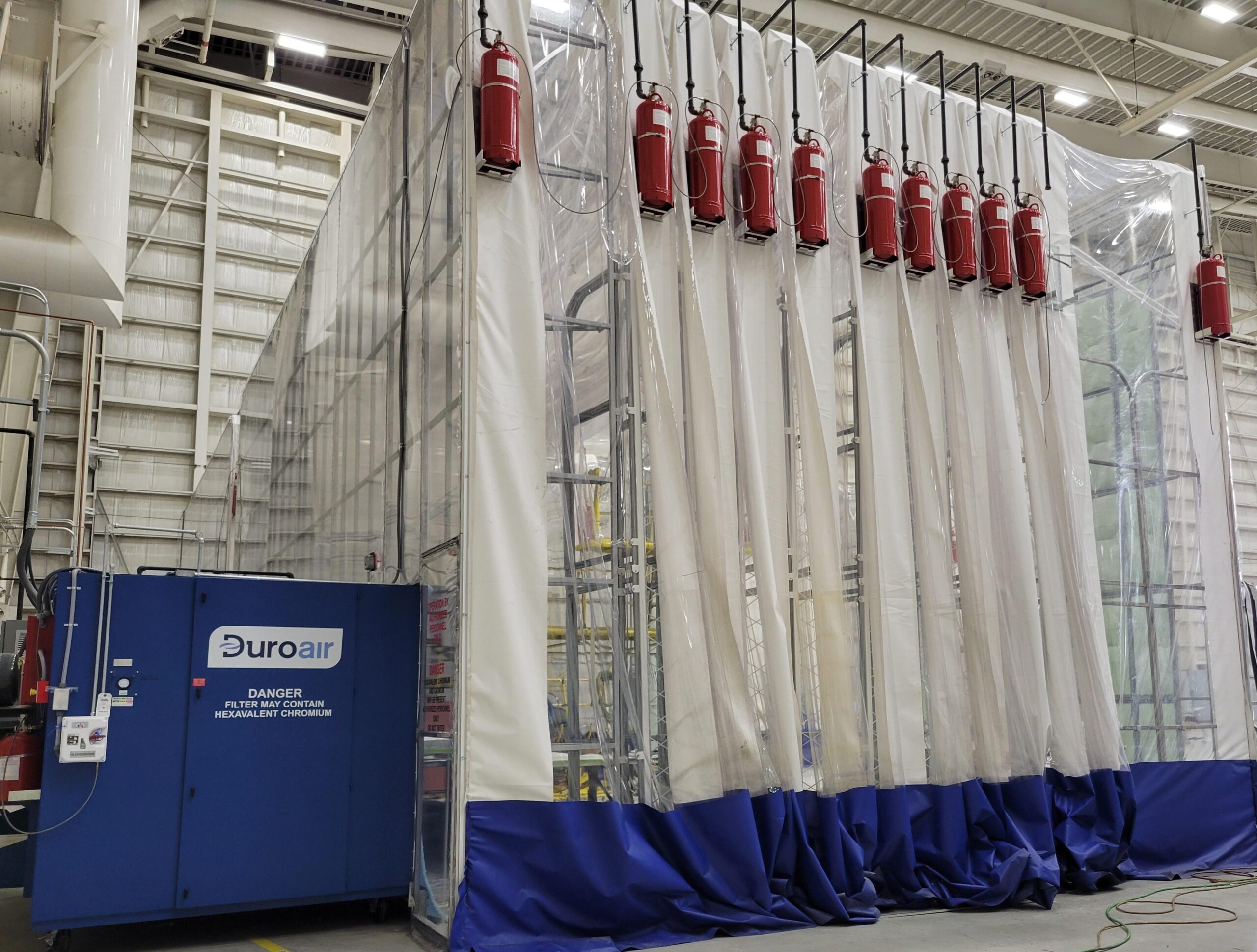

- Fire Suppression: The fire suppression system in DuroRoom is designed by Kidde Badger and protects both exhaust systems and the enclosure. This design moves with the enclosure as it extends and retracts. For non-retracting DuroRooms, wet fire suppression systems can be used.
Technical Specifications
- Modular design in 5’-0” or 6’-0” increments, with sizes up to 50’-0” high and 65’-0” wide with unlimited linear length.
- Door options available: barn doors, bifold doors, solid curtain, mesh curtain, or open face.
- Custom frame options, such as “V” groove wheels with inverted angle and track for enclosures greater than 40’ long.
- Fabricated from cost competitive, fire-resistant clear and solid vinyl and heavy walled steel framing.
- All vinyl NFPA 701 compliant, with clear, opaque, and custom options available.
For ISO classifications and other technical information, download our DuroRoom fact sheet!
DOWNLOAD FACT SHEETDuroRoom™ ISO 14644-1 Classifications
All classifications are in accordance with U.S. Federal Standard 209E and represent concentrations of particles using reference size of 0.5 micron.
| Code Compliance | Code Description |
|---|---|
| ISO1 | 10 for 0.1 micron 2 for 0.2 micron |
| ISO2 | 100 for 0.1 micron 24 for 0.2 micron 10 for 0.3 micron 4 for 0.5 micron |
| ISOISO3 (Class 1)1 | 1,000 for 0.1 micron 237 for 0.2 micron 102 for 0.3 micron 35 for 0.5 micron 8 for 1 micron |
| ISO4 (Class 10) | 10,000 for 0.1 micron 2,370 for 0.2 micron 1,020 for 0.3 micron 352 for 0.5 micron 83 for 1 micron |
| ISO5 (Class 100) | 100,000 for 0.1 micron 23,700 for 0.2 micron 10,200 for 0.3 micron 3,520 for 0.5 micron 832 for 1 micron 29 for 5 microns |
| ISO6 (Class 1000) | 1,000,000 for 0.1 micron 237,000 for 0.2 micron 102,000 for 0.3 micron 35,200 for 0.5 micron 8,320 for 1 micron 293 for 5 microns |
| ISO7 (Class 10,000) | 352,000 for 0.5 micron 83,200 for 1 micron 2,930 for 5 microns |
| ISO8 (Class 100,000) | 3,520,000 for 0.5 micron 832,000 for 1 micron 29,300 for 5 microns |
| ISO9 (Room Air) | 35,200,000 for 0.5 micron 8,320,000 for 1 micron 293,000 for 5 microns |
